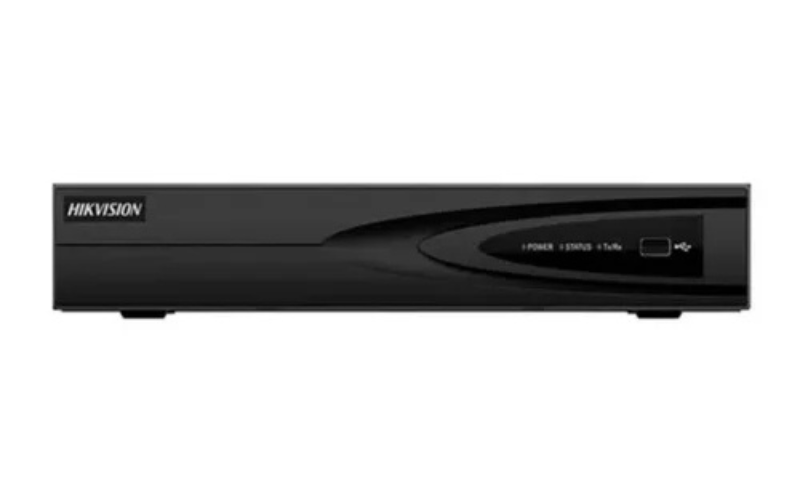

Hikvision DS‑7616NI‑Q1 – 16‑Channel 4K Network Video Recorder
📌 Overview
The Hikvision DS‑7616NI‑Q1 is a 1U, rack-mountable NVR designed for small to medium-sized business (SMB) and professional surveillance setups. It supports recording up to 16 IP cameras in 4K resolution, featuring H.265+ compression and advanced analytics. hikvisionland.com+15hikvision.com+15hikvision.com+15
🎥 Key Features
16‑channel IP video input with up to 160 Mbps incoming and 80 Mbps outgoing bandwidth sourcesecurity.com+12hikvision.com+12hikvisionpakistan.com+12
Supports H.265+/H.265/H.264+/H.264 codecs, achieving up to 75% storage savings versus H.264 sourcesecurity.com+12manualzz.com+12hikvision.com+12
4K HDMI output (4096 × 2160 / 3840 × 2160 @ 30 Hz) plus Full HD VGA; simultaneous output hikvision.com+8hikvision.com+8hikvisionpakistan.com+8
Decoding capacity: 1 ch @ 8 MP, 3 ch @ 4 MP, or 6 ch @ 1080p (all at 30 fps) hikvisionbd.net+12hikvision.com+12hikvision.com+12
Smart Playback & Search with multiple VCA (line crossing, intrusion, etc.) and Motion Detection 2.0 (4 human/vehicle detection channels) hikvision.com+9hikvision.com+9manualzz.com+9
⚙️ Technical Specs
| Feature | Description |
|---|---|
| Audio I/O | 1‑ch RCA output; 1‑ch two‑way audio (RCA, 2 Vp‑p, 1 kΩ) visiotechsecurity.com+13hikvision.com+13hikvision.com+13 |
| Storage | 1× SATA interface, supports up to 8 TB HDD |
| USB | 2× USB 2.0 (front + back) |
| Ethernet | 1× RJ-45 10/100/1000 Mbps, supports TCP/IP, DHCP, IPv6, HTTP/S, ONVIF, NFS, iSCSI, and more |
| Remote Access | Up to 32 simultaneous remote connections; Hik‑Connect app support |
| Power | 12 V DC @ 1.5 A; ≤ 10 W idle (no HDD) |
| Operating Conditions | –10 °C to 55 °C; 10–90% humidity |
| Dimensions & Weight | 320 × 240 × 48 mm; ≤ 1 kg (without HDD) |
| Certifications | CE, FCC, RoHS, UL, FCC Part 15 |
✅ Why Choose It?
High scalability: Perfect for installations with up to 16 cameras—all in 4K recording.
Storage-efficient: H.265+ compression reduces storage use dramatically.
Smart analytics: VCA features and Motion Detection 2.0 provide proactive alerting and reduce false triggers.
Flexible playback: Smart search and simultaneous multi-channel playback streamline incident reviews.
Secure connectivity: Industry-standard networking and encryption, plus mobile access via Hik‑Connect.
🔧 Available Variants
DS‑7616NI‑Q1 (standard) – Base model
DS‑7616NI‑Q1(C) – Compact models with variations in firmware configurations
DS‑7616NI‑Q1(D) – Includes enhanced VCA and Motion Detection 2.0 features hikvision.com+11hikvision.com+11manualzz.com+11hikvision-cctv.com+2manualzz.com+2hikvision.com+2hikvision.com+4hikvisionbd.net+4hikvision-cctv.com+4visiotechsecurity.com+5hikvision.com+5hikvisionbd.net+5
🛒 Ideal For
Retail stores, office spaces, warehouses, and small campuses
Users requiring 4K-quality recording, smart detection, and remote monitoring
Installations needing a cost-effective yet high-capacity NVR
